FMV 5S VERTICAL MIXER FEEDER 5 CUBIC METER

Fimaks

FMV 5S model mixer feeder is an ideal solution for farms with 60-80 animals. The simple, durable and lightweight construction of the machine makes it the best equipment for small dairy and cattle farms.

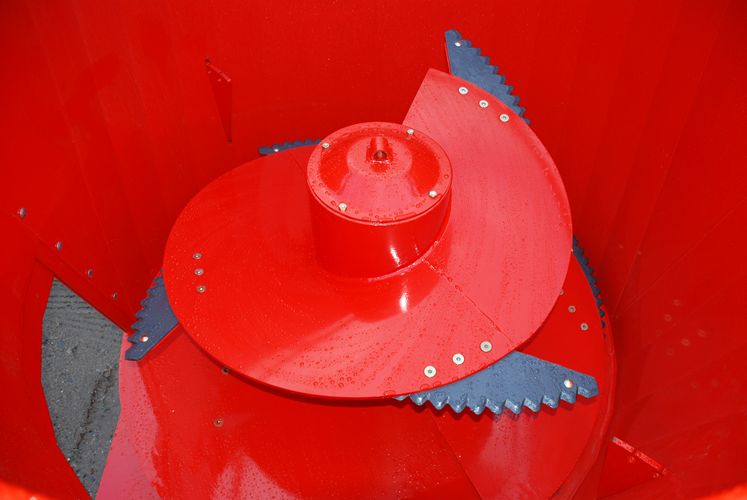

The design of the vertical auger equipped with special designed cutting knives cuts the round and square bales at a short time and creates an homogeneous ratio mixed with other feed and additives.  There are no dead spots because of the design of the auger and bucket so it is more hygenic compared to other mixers on the market. Also there is no feed left in the bucket after unloading.

This special design with a durable gearbox makes a long life time and less power need compared to the horizontal mixer feeders.

The feeds can be weighed and rations can be prepared effectively with the optional electronic weighing system.

Available Options:

  • Electronic weighing system
  • Loading bucket
  • Hydraulic pump on the machine
  • Lateral conveyor
  • 18,5kW electric motor (for fixed or trailed use)
CHARACTERISTICS                  FMV 5S
Volume 3m3 (176ft3)
Length 3.950mm (155in.)
Length with Bucket 4.650mm (183in.)
Height 2.400mm (95in.)
Width 2.050mm (80in.)
Weight 2.150kg (4740lbs)
Maximum Weight of Load 1.750kg (3858lbs)
Weighing System Optional
Number of Loadcells for Weighing System 3
Number of Auger 1
Auger speed 32 rpm
Number of Knives on the Auger 5
Number of Fixed Knives 2
Minimum Needed Power 28 kW / 40 hp
Tyres 2x (10x75-15,3)
